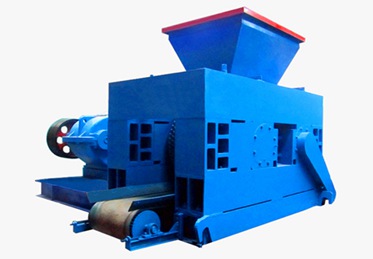

High Pressure Briquette Machine

The high pressure briquette machine is mainly used to press powder materials that are hard to press such as coal powder.

E-mail:market@sinoftm.com Inquiry Us Now Online

Introduction

High pressure briquette machine, also known as the high pressure roller briquetting machine, is mainly used to press powder materials that are hard to press such as coal powder, iron powder, coking coal, aluminite powder, scrap iron, carbon powder, ore slag, gypsum, tailings, mud, kaolin, activated carbon and coke breeze in the industries of refractory matter, power plant, metallurgy, chemical, energy, transportation and heat supply.

Features

High pressure briquette machine features high forming pressure, adjustable engine revolution and assembled spiral feeding device. Materials processed by the high pressure roller briquetting machine are environmental friendly and easy for transportation, which increases the usage of the wastes and brings good economic and social benefits.

High Pressure Briquette Machine

Parameter

Model	Roll diamter （mm）	Roll width （mm）	Total pressure （t）	Main motor power （kw）	Output （t）	Weight （t）
GY520-150	520	196	150	55	2.2-3.5	13
GY650-220	650	200	220	110	4-6.5	19.2
GY750-300	750	280	300	185	6-8.5	34
GY1000-350	1000	440	350	250	10-15	50.8
GY1000-450	1000	504	450	280	14-17	58.5
GY1000-500	1000	504	500	315	15-20	58.5
GYS1000-500	1000	600	500	280	17-21	56.5
GY1000-540	1000	900	540	185Kw×2	30-35	60
GY1200-800	1200	900	800	280Kw×2	40	110
GY1400-1000	1400	1000	1000	400Kw×2	50	156
