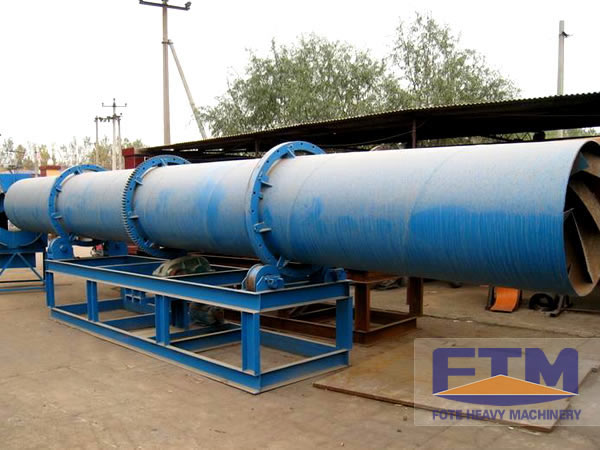

Lignite Coal Dryer
Lignite coal dryer is machinery mainly used for drying lignite and other materials, also called lignite rotary dryer. Lignite coal dryer adopts low temperature four class drying process to make the moisture content of lignite evaporated below 13%.
E-mail:market@sinoftm.com Inquiry Us Now OnlineIntroduction
Lignite coal dryer is machinery mainly used for drying lignite and other materials, also called lignite rotary dryer. Lignite coal dryer adopts low temperature four class drying process to make the moisture content of lignite evaporated below 13%. Lignite coal dryer has four working areas of high temperature drying area, intermediate temperature drying area, low temperature drying area and exhausting area.
Features
Lignite coal dryer is suitable for drying coal sludge, coal, flotation clean coal, mixed clean coal in coal industry; blast furnace slag, clay, Alta mud, quartzite, limestone, sand and other materials in construction industry; metal concentrates, sludge, tailings and other materials in mineral separation industry; as well as the non-heat-sensitive materials in chemical industry.
Parameter
| Product Specification （m) |
Processing capacity（t/h) | Motor power-type (kw) |
Reducer type | Feeding moisture（%） | Heat value of bunker coal | Discharging moisture （%） |
| Φ1.2x10 | 2.5-3 | M160M-6-7.5 | ZQ350Ⅱ-25 | 25±5 | ≥5500 | ≤13 |
| Φ1.5x14 | 7-9 | Y180L-6-15 | ZQ400Ⅱ-31.5 | 25±5 | ≥5500 | ≤13 |
| Φ1.5x18 | 9.5-12 | Y180L-6-15 | ZQ400Ⅱ-31.5 | 27±5 | ≥5500 | ≤13 |
| Φ1.8x14 | 12-15 | Y200L-6-18.5 | ZQ400Ⅱ-31.5 | 25±5 | ≥5500 | ≤13 |
| Φ1.8x18 | 14-18 | Y200L1-6-18.5 | ZQ400Ⅱ-31.5 | 27±5 | ≥5500 | ≤13 |
| Φ2.0x18 | 18-22 | Y200L2-6-22 | ZQ50Ⅱ-31.5 | 25±5 | ≥5500 | ≤13 |
| Φ2.0x20 | 18-23 | Y200L2-6-22 | ZQ50Ⅱ-31.5 | 30±5 | ≥5500 | ≤13 |
| Φ2.2x18 | 21-25 | Y200L2-6-22 | ZQ65Ⅱ-31.5 | 27±5 | ≥5500 | ≤13 |
| Φ2.2x20 | 22-25 | Y225M-6-30 | ZQ65Ⅱ-31.5 | 30±5 | ≥5500 | ≤13 |
| Φ2.4x20 | 25-29 | Y225M-6-30 | ZQ75Ⅱ-31.5 | 27±5 | ≥5500 | ≤13 |
| Φ2.4x22 | 26-30 | Y225M-6-30 | ZQ75Ⅱ-31.5 | 30±5 | ≥5500 | ≤13 |
| Φ2.6x20 | 28-33 | Y250M-6-37 | ZQ85Ⅱ-31.5 | 25±5 | ≥5500 | ≤13 |
| Φ2.6x24 | 29-35 | Y250M-6-37 | ZQ85Ⅱ-31.5 | 30±5 | ≥5500 | ≤13 |
| Φ3.0x20 | 45-50 | Y280S-6-45 | ZQ100Ⅱ-31.5 | 25±5 | ≥5500 | ≤13 |
