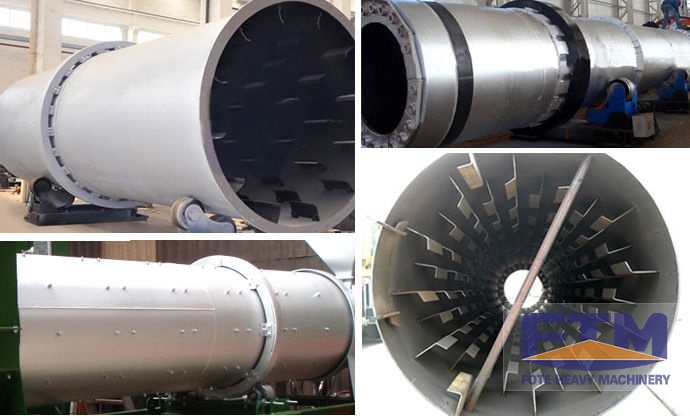

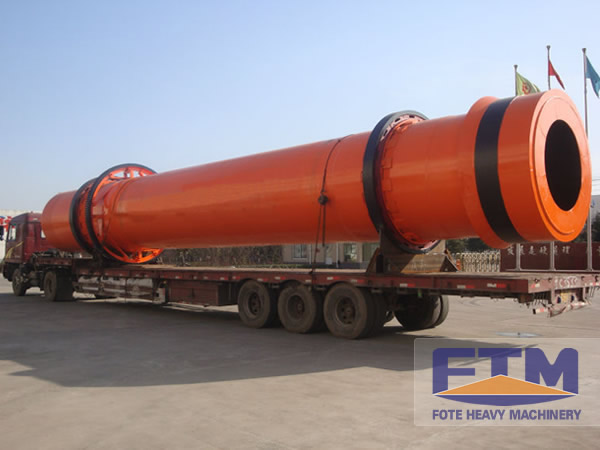

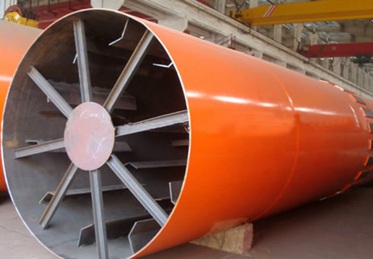

Slag Dryer
Slag drying machine uses new type of feeding and discharging devices, which puts an end to the uneven feeding jams and discontinuous return of slag drier, and reduces the dust load on the system.
E-mail:market@sinoftm.com Inquiry Us Now OnlineIntroduction
Slag dryer or slag drying machine is also a kind of rotary dryer, widely used in building materials, metallurgy, mineral processing, chemical industry and cement industry, for drying slag, carbide slag, limestone, clay, kaolin, bentonite, silicon carbide powder, manganese ore, petroleum coke and other materials.
Slag drying machine uses new type of feeding and discharging devices, which puts an end to the uneven feeding jams and discontinuous return of slag drier, and reduces the dust load on the system. Innovation on the internal structure is implemented, which strengthens the cleaning and heat transfer of decentralized materials, and eliminates the dip-sticking to the cylinder wall.
Features
Slag drying machine uses new type of feeding and discharging devices, which puts an end to the uneven feeding jams and discontinuous return of slag drier, and reduces the dust load on the system. Innovation on the internal structure is implemented, which strengthens the cleaning and heat transfer of decentralized materials, and eliminates the dip-sticking to the cylinder wall.
Parameter
| Model(m) | Processing capacity(t/h) | Feeding moisture(%) | Discharging moisture(%) | Main motor power(kw) | Heat value of coal(kcal/kg) | Imlet temperature(℃) |
| Φ1.5×14 | 10-12 | 20±3 | ≤10 | 15 | ≥5500 | 700±50 |
| Φ1.8×14 | 15-18 | 20±3 | ≤10 | 18.5 | ≥5500 | 700±50 |
| Φ2.0×16 | 20-25 | 20±3 | ≤10 | 18.5 | ≥5500 | 700±50 |
| Φ2.2×18 | 25-30 | 20±3 | ≤10 | 22 | ≥5500 | 700±50 |
