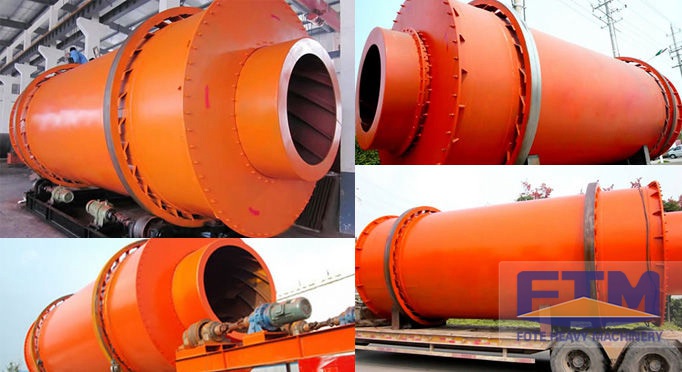

Sleeve Dryer
Sleeve dryer is improved on the basis of the traditional high-humidity material drying machine to be an energy-saving dryer with high efficiency.
E-mail:market@sinoftm.com Inquiry Us Now OnlineIntroduction
Sleeve dryer is improved on the basis of the traditional high-humidity material drying machine to be an energy-saving dryer with high efficiency. Energy-saving sleeve dryer is used to dry all kinds of slag materials with humidity less than 85% like brewer’s grain, alcohol grain, fruit grain, medicine slag, sauce grain, sugar grain, starch slag, animal faeces and butcher leftovers. Now sleeve dryer can not only process the high humidity materials with both weak and strong stickiness.
Features
Sleeve dryer is with small footprint, easy to transport, ease of installation and other advantages. The materials and hot air do back and forth downstream, upstream and downstream to implement heat exchange, and drain water evaporated by material in inner drum will be siphoned directly by fan, so the utilization efficiency of thermal energy is high. Sleeve dryer is capable of continuous operation, and is with large capacity, low energy consumption, strong practicality, operating flexibility, smooth, fewer failures and long service life.
Parameter
| Specification | Production capacity(t/h) | Power(KW) | Shell rotating speed(r/min) |
| Φ0.6×8 m | 1.5-2.8 | 4 | 8 |
| Φ0.8×10 m | 3.0 | 4 | 7.5 |
| Φ10×10 m | 3.3-4.9 | 5.5 | 5.8 |
| Φ1.2×10 m | 4-6 | 7.5 | 4.8 |
| Φ1.5×12 m | 4-6 | 10 | 4.8 |
| Φ1.5×15 m | 7-12 | 18.5 | 4.8 |
| Φ1.8×12 m | 7-12 | 18.5 | 4.1 |
| Φ2.2×12 m | 12 | 18.5 | 3.2 |
| Φ2.2×14 m | 12 | 22 | 3.2 |
| Φ2.2×16 m | 10-13 | 30 | 3.2 |
| Φ2.4×14 m | 10-14 | 30 | 3 |
| Φ2.4×18 m | 25 | 37 | 3 |
| Φ2.4×20 m | 32-36 | 37 | 3 |
| Φ3×20 m | 40-50 | 55 | 2.59 |
| Φ3×25 m | 45-58 | 75 | 2.59 |
