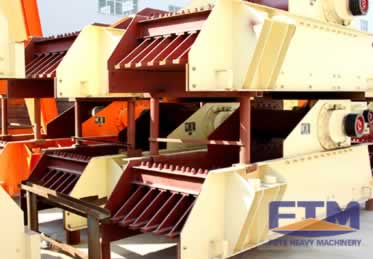

Vibrating Feeder
The vibrating feeder is also called vibrating grizzly feeder which can feed the bulk and granular materials from the storage bin to the receiving device, well-distributed, regularly and continuously.
E-mail:market@sinoftm.com Inquiry Us Now OnlineIntroduction
The vibrating feeder is also called vibrating grizzly feeder which can feed the bulk and granular materials from the storage bin to the receiving device, well-distributed, regularly and continuously. It can feed materials for the crushing equipment in the sand production line and then will do rough screening of these materials. The vibrating feeder is widely applied as part of the crushing and screening device in the industries like metallurgy, coal mine, and ore beneficiation, building materials, chemical and grinding materials.
.jpg)
.jpg)
.jpg)
Features
The vibration feeder is a feeding machine with advanced economic and technical norms and with advantages of small size, light weight, simple structure, easy installation and maintenance, low operation cost, high efficiency, strong feeding capacity, little noise, environmental protection, low power consumption, stable amplitude, reliable running, and high adaptability. In addition, it can feed materials evenly and continuously with the adjustable exciting force. Its discharge can also be changed and controlled with simple operation, little noise, low power consumption and good adjustability and no material impacting phenomenon. By using the seal type machine frame, the vibrating feeder can work stably and reliably with long service life and no dust pollution.
Parameter
| Model | Max.feeding size (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Obliquity of material trough ( °) |
Total weight (kg) |
Trough size (mm) |
Dimensions (L×W×H) (mm) |
| GZD-650×2300 | 300 | 80 | 1.1×2 | 10 | 2798 | 650×2300 | 2300×1360×780 |
| GZD-750×2500 | 350 | 100 | 1.1×2 | 10 | 3260 | 750×2500 | 2500×1460×780 |
| GZD-850×3000 | 400 | 120 | 3×2 | 10 | 3607 | 850×3000 | 3110×1800×1600 |
| GZD-1000×3600 | 500 | 150 | 5.5×2 | 5 | 3895 | 1000×3600 | 3850×1950×1630 |
| GZD-1100×4200 | 580 | 240 | 5.5×2 | 5 | 4170 | 1100×4200 | 4400×2050×1660 |
| GZD-1100×4900 | 580 | 280 | 7.5×2 | 5 | 4520 | 4900×1100 | 5200×2050×1700 |
| GZD-1300×4900 | 650 | 450 | 11×2 | 5 | 5200 | 4900×1300 | 5200×2350×1750 |
| GZD-1500×5600 | 1050 | 450-800 | 12×2 | 10 | 7500 | 1500×5600 | 5700×2000×1750 |
| ZSW-380×95 | 500 | 100-160 | 11 | 0 | 4823 | 3800×960 | 3920×1640×1320 |
| ZSW-490×110 | 630 | 150-320 | 15 | 0 | 6647 | 4900×1100 | 4980×1830×1320 |
| ZSW-600×130 | 750 | 400-600 | 22 | 0 | 9250 | 6000×1300 | 6082×2580×2083 |
| ZSW-600×150 | 800 | 500-700 | 30 | 0 | 10190 | 600×1500 | 6086×2662×1912 |
| ZSW-600×180 | 800 | 700-1000 | 37 | 0 | 13750 | 600×1800 | 6310×3262×2230 |
