Rod mill

Rod mill

Rod mill is also called rod grinding mill. It can be classified into ore rod mill, wet rod mill and so on. Rod grinding machine is mainly used in the preparation of the coal chemical industry, quartz sand, silica sand, sand filling, tungsten ore

E-mail:market@sinoftm.com Inquiry Us Now Online

Introduction

Rod mill is also called rod grinding mill. It can be classified into ore rod mill, wet rod mill and so on. Rod grinding machine is mainly used in the preparation of the coal chemical industry, quartz sand, silica sand, sand filling, tungsten ore, potassium and sodium feldspar, bauxite and other industries. Rod mill adopts advanced controllable rod grinding technology, combining the actual needs of the clients arrange suitable grinding media. Different from the traditional surface contact of ball mill, the line contact makes more uniform particle and high productivity and is suitable for ore with different hardness (Mohs hardness 5.5-12).\

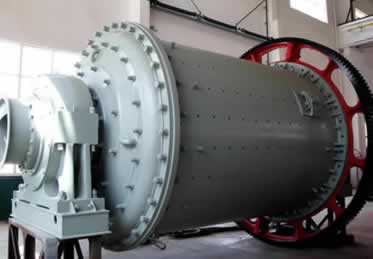

Rod mill

Fote Machinery is a famous rod grinder manufacturer. The product made in Fote has guaranteed quality and perfect service. Fote rod mill price is quite low and the quality is quite high. If you want to know more information about the equipment, you can pay a visit. We will always at your service.

Characteristics of Fote Rod Mill

Compared with traditional equipment, Fote rod grinder can save energy by more than 40%. Uniform product particle contains few large particles and slurries. In contrast with the product particle of ball mill, the product particle of open-circuit rod mill has nearly the same characteristic curve with the closed-circuit ball mill.

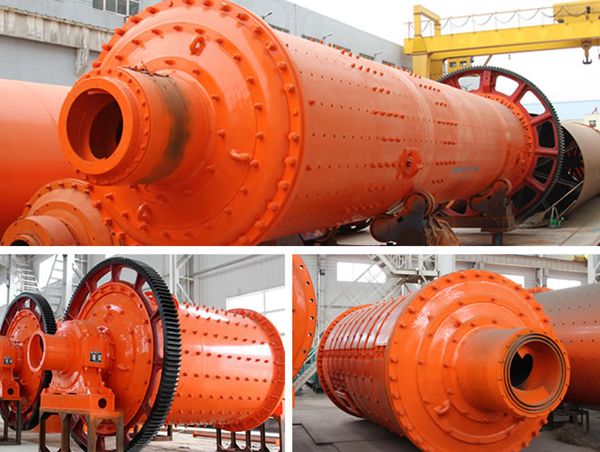

Rod mill

Application of Rod Mill

1. Reselection or magnetic separation in tungsten tin ore or other rare metal ore. In case the over-crushing, rod mill is often selected.

2. When secondary section grinding process is adopted, if the first section grind from 20-6mnm to 3-1mm adopting rod mill as the first section grinding machine has larger capacity and higher efficiency.

3. Under certain circumstances, rod mill can replace short-head cone crusher to conduct fine crushing. When the materials is soft or not very hard (especially the viscous ore),use rod mill grind19-25mm to 6-10 mesh has simple configuration than short-head cone crusher and can save costs.

Installation Instruction of Rod Mill

1. The installation position of rod milling sand concerns much with crushing machine. With different broken sites there is different installation position for rod mill and usually the rod grinders are installed in the plant or outdoor worksite.

2. Before install the rod mill, according to packing list, check all parts for any damage during transport, spare parts are included.

3. Check if all parts connection are solid and reliable, carefully check that the impeller has something else .Check for proper motor wiring and if voltage is normal.

Parameter

Model Shell Specifications (mm) Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(kg)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5500
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6100
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 12000
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 16800
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 29000
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 34800
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 37000
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 54000
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 86000
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 94000
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 137000
